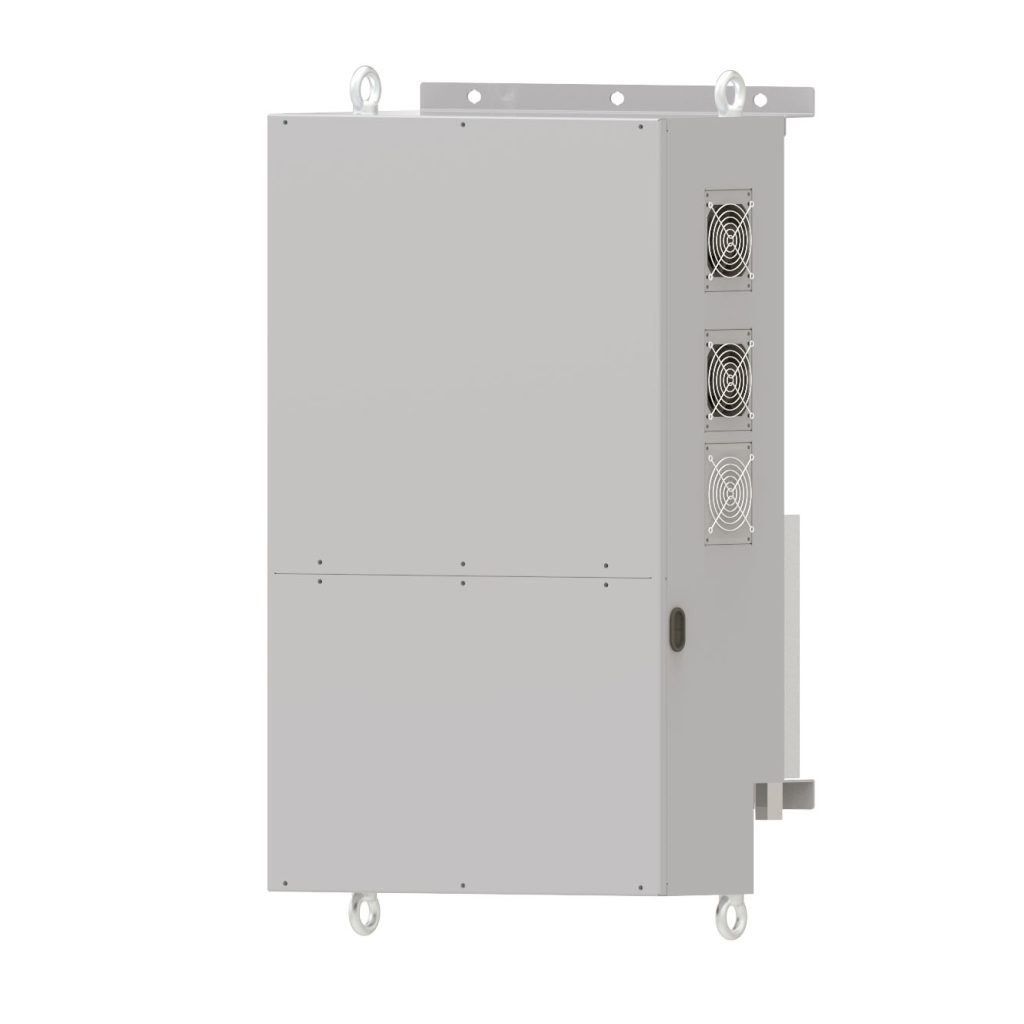

The S700 series water-cooled inverter is a core driving equipment specially designed for magnetic levitation centrifugal units, providing high adaptability and strong performance to ensure stable operation of the units. Its output frequency covers 0~1000Hz, which can accurately match the speed requirements of the unit under different operating conditions, achieving seamless switching from low-speed start-up to high-speed operation.
In terms of performance optimization, the inverter is equipped with multiple core technologies, and the product has been upgraded in reliability and practicality to adapt to various types of units.

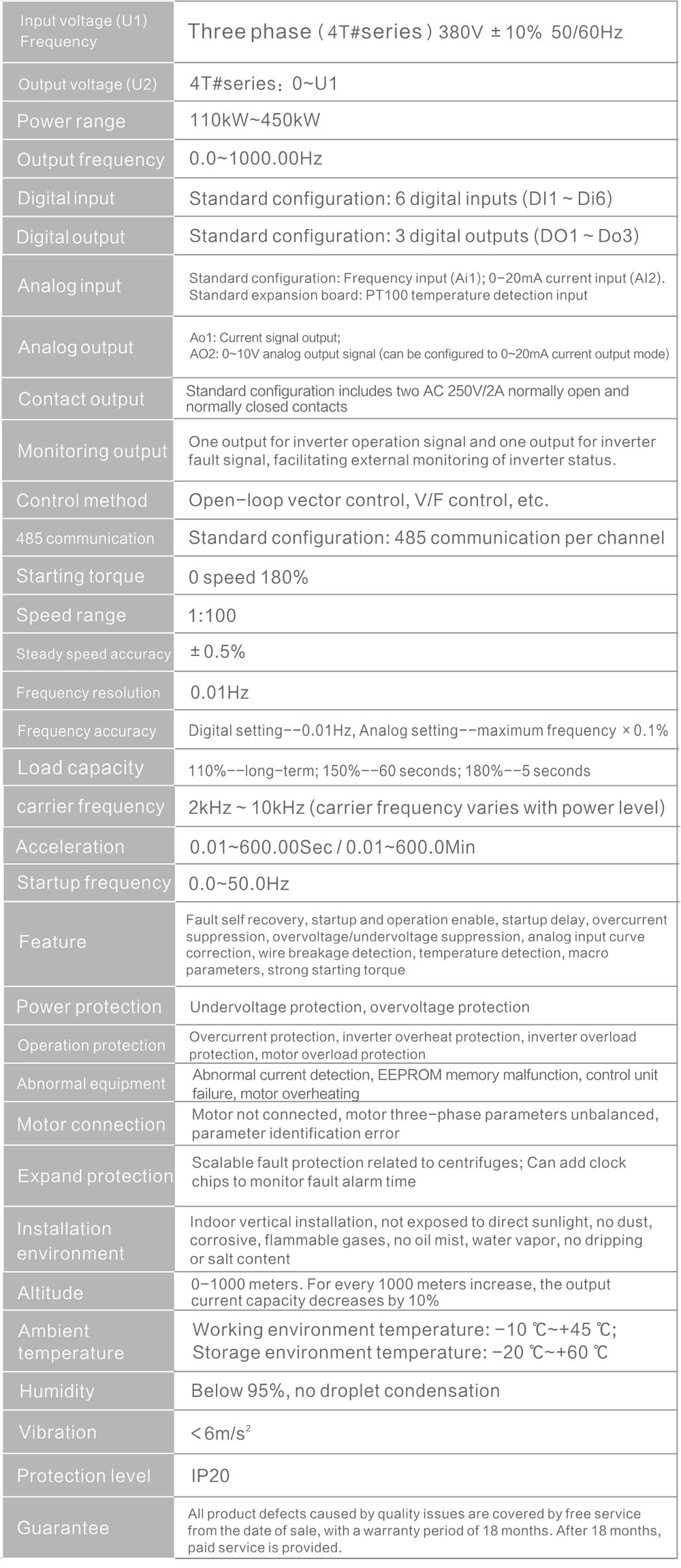

Features：
※ The output frequency ranges from 0 to 1000Hz.
※The carrier frequency supports a wide adjustment range of 2 to 16kHz. A higher carrier frequency results in a smoother output waveform, effectively reducing motor noise and mechanical wear.
※The main circuit is seamlessly integrated with the water-cooled cooling system, a standard feature across the entire product line. This design significantly outperforms traditional cooling methods, maintaining stable temperature levels even under highload conditions and extending the lifespan of core components.
※All series come with standard DC reactors, paired with optimized driving algorithms to maintain high power factor, reduce grid harmonic interference, and minimize energy waste.
※Features energy feedback during main circuit power failure or shutdown, enabling motor kinetic energy recovery to further enhance energy efficiency.
※ Enhanced driver protection ensures greater stability and reliability.

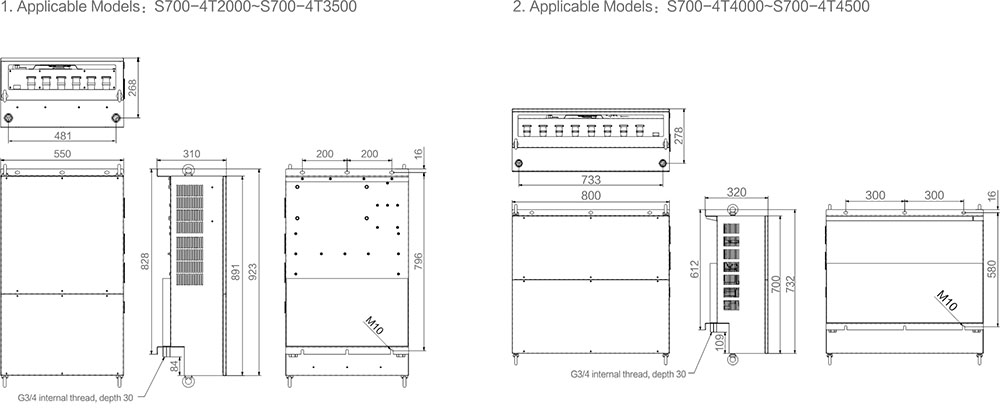

※The integrated busbar function and compact design simplify system wiring while significantly reducing equipment size, freeing up more space for installation layouts and accommodating various generator sets.
Applications
※Magnetic levitation compressor, magnetic levitation blower, magnetic levitation air compressor
